iWin

Our proprietary line.

Four products we engineered, tested, and certified because the work coming through our shop — Palm Beach residential, Miami Beach commercial, the specific demands of South Florida architects — couldn't always be solved by what was on the market. Each is independently Miami-Dade or Florida approved, impact-rated for the High Velocity Hurricane Zone, and fabricated in-house at our Doral facility.

The line

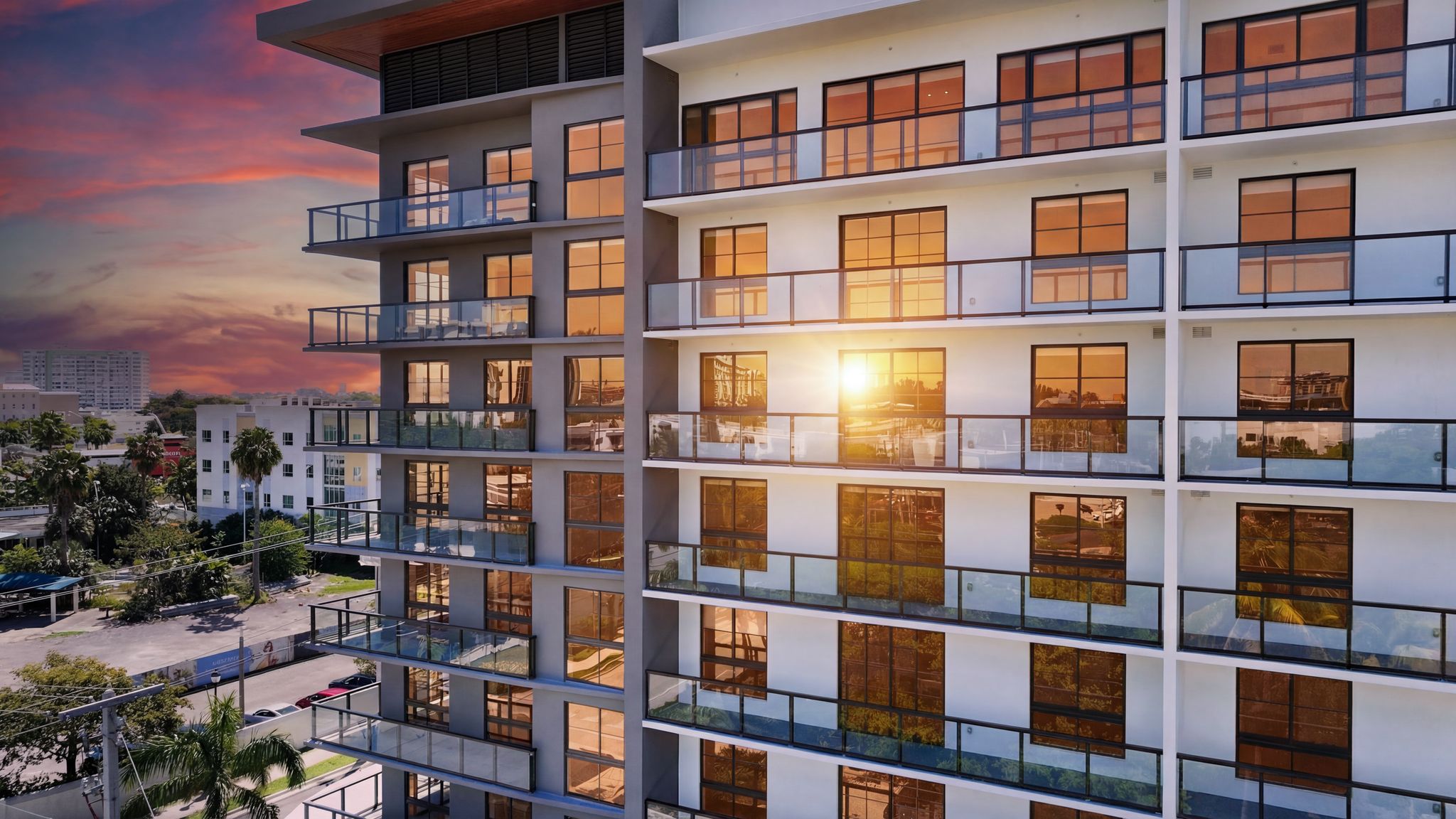

IW1000

Post Railing System

Large and Small MissileLead time · 4 to 6 weeks

Commercial buildings, balconies, terraces where engineered posts are the right language — office buildings, hotels, multifamily amenity decks.

Railing height up to 44"
Post spacing up to 52"
Design loads up to 120 PSF
7/16" overall laminated tempered glass (3/16" tempered + 0.035" SentryGlas interlayer + 3/16" tempered)
Post embedment 4-1/2" into concrete (3000, 4000, or 5000 PSI)

Miami-Dade NOA 23-0710.26 · expires Jun 2027

Engineered by Al-Farooq Corp / Jalal Farooq, PE

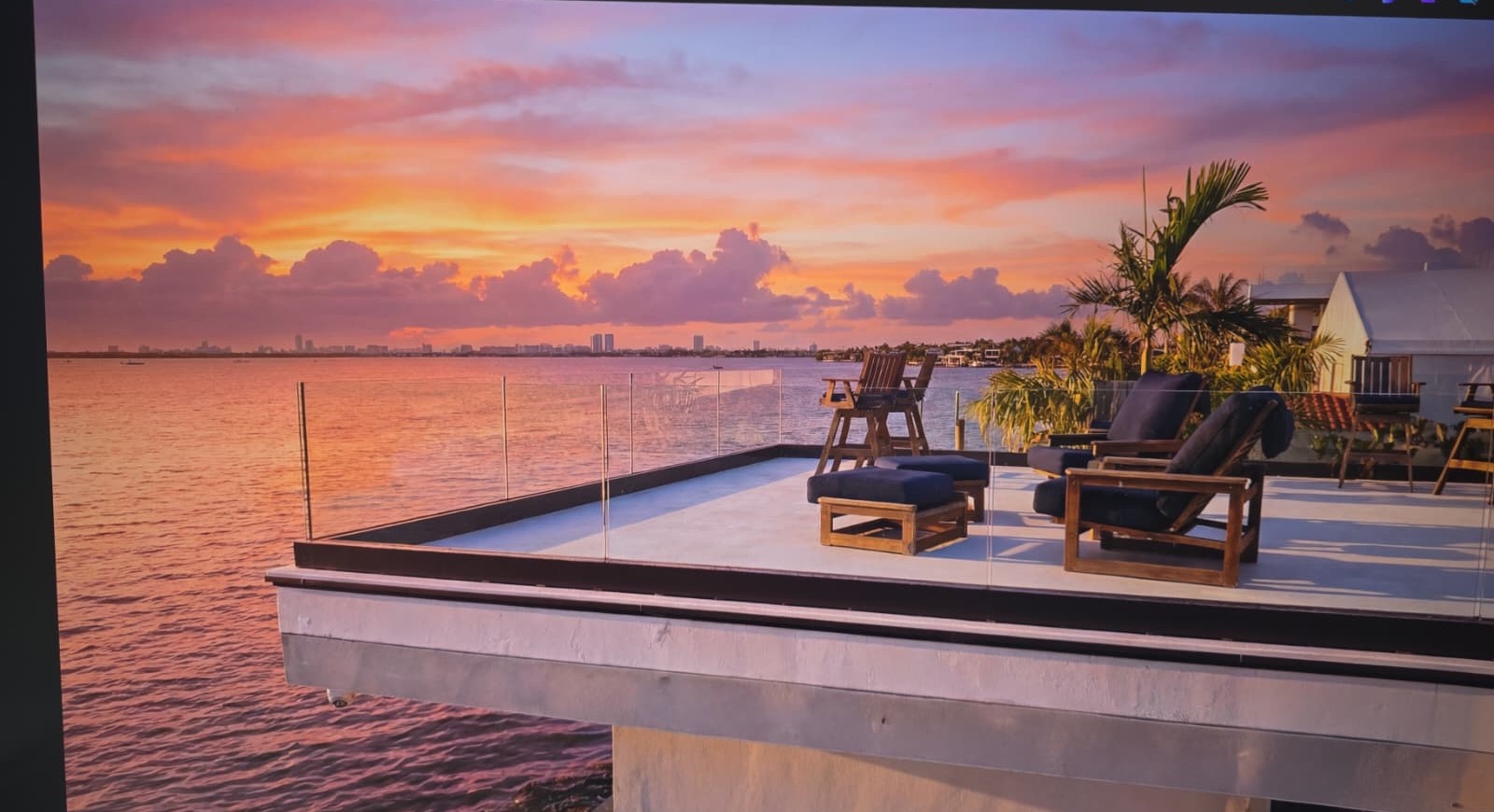

IW2000

Frameless Base Shoe Glass Railing

Large and Small MissileLead time · 4 to 6 weeks

Residential, particularly high-end homes where uninterrupted views matter. Pool decks, ocean-facing balconies, interior stair guards. Anywhere a visible post would break the line.

Glass widths up to 72"
Railing height up to 44"
13/16" overall laminated tempered glass (3/8" tempered + 0.090" SentryGlas interlayer + 3/8" tempered)
Design pressures up to ±150 PSF with shoe anchor clip
Anchor options: concrete (3000 or 6000 PSI), aluminum (6063-T6, 3/8" minimum), or A36 steel (1/8" minimum)

Miami-Dade NOA 24-1105.03 · expires Feb 2030

Engineered by Javad Ahmad, PE

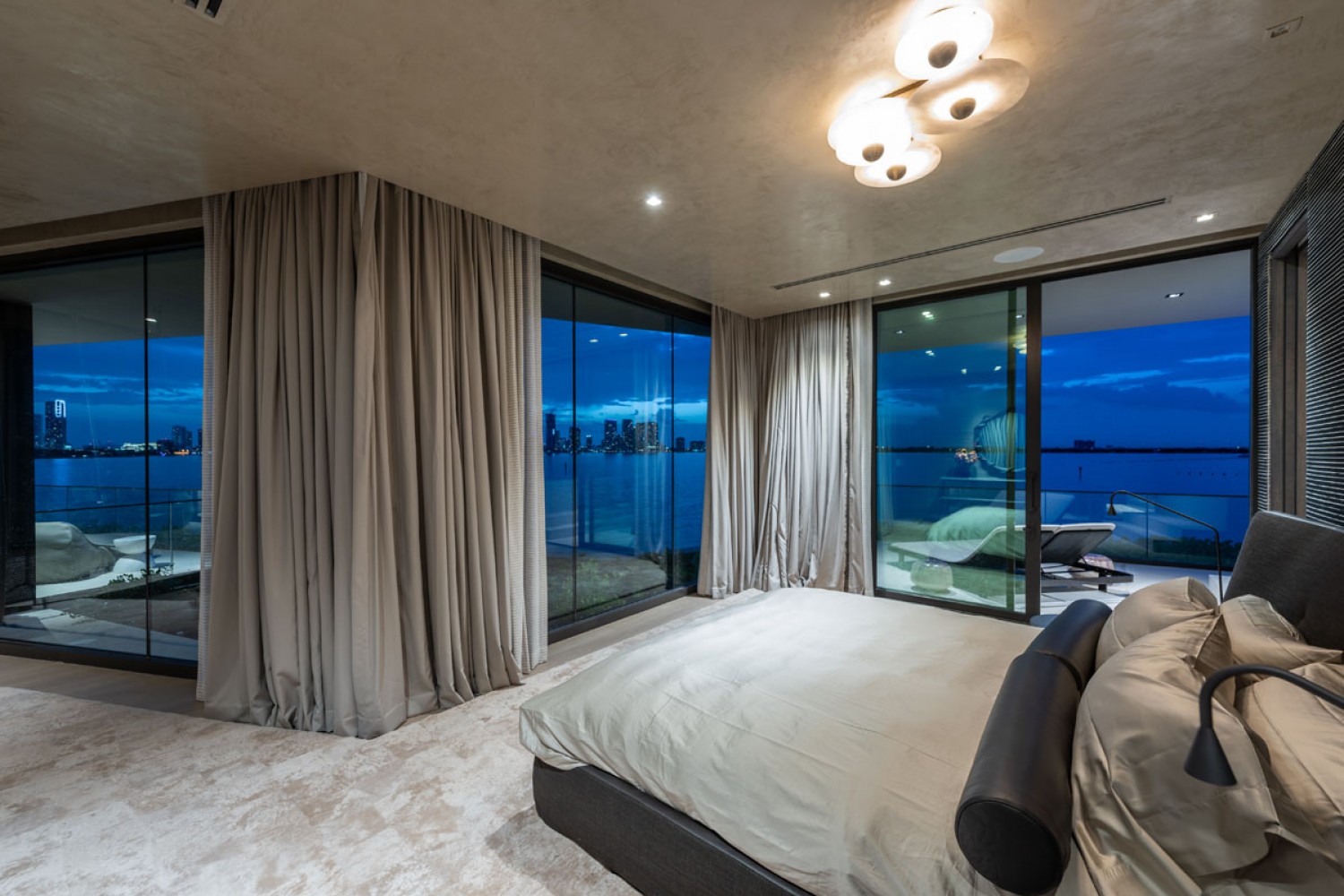

IW3000

Frameless Window Wall

Large and Small MissileLead time · 4 to 6 weeks

Oceanfront and waterfront residential where the view is the design statement. Master bedrooms, great rooms, bathrooms positioned for unobstructed vistas. Anywhere a framed window wall would interrupt the horizon.

Glass panels up to 60" wide by 168" (14 feet) high
Three glass configurations: 9/16" laminated (up to 10 feet), 1-1/16" insulated laminated, 1-1/8" laminated (required for tallest spans up to 14 feet)
Design pressures up to ±100 PSF
2" minimum glass bite
Anchors into concrete, metal structure, or FBC-approved mullion

Florida FL# 29713

Engineered by Javad Ahmad, PE

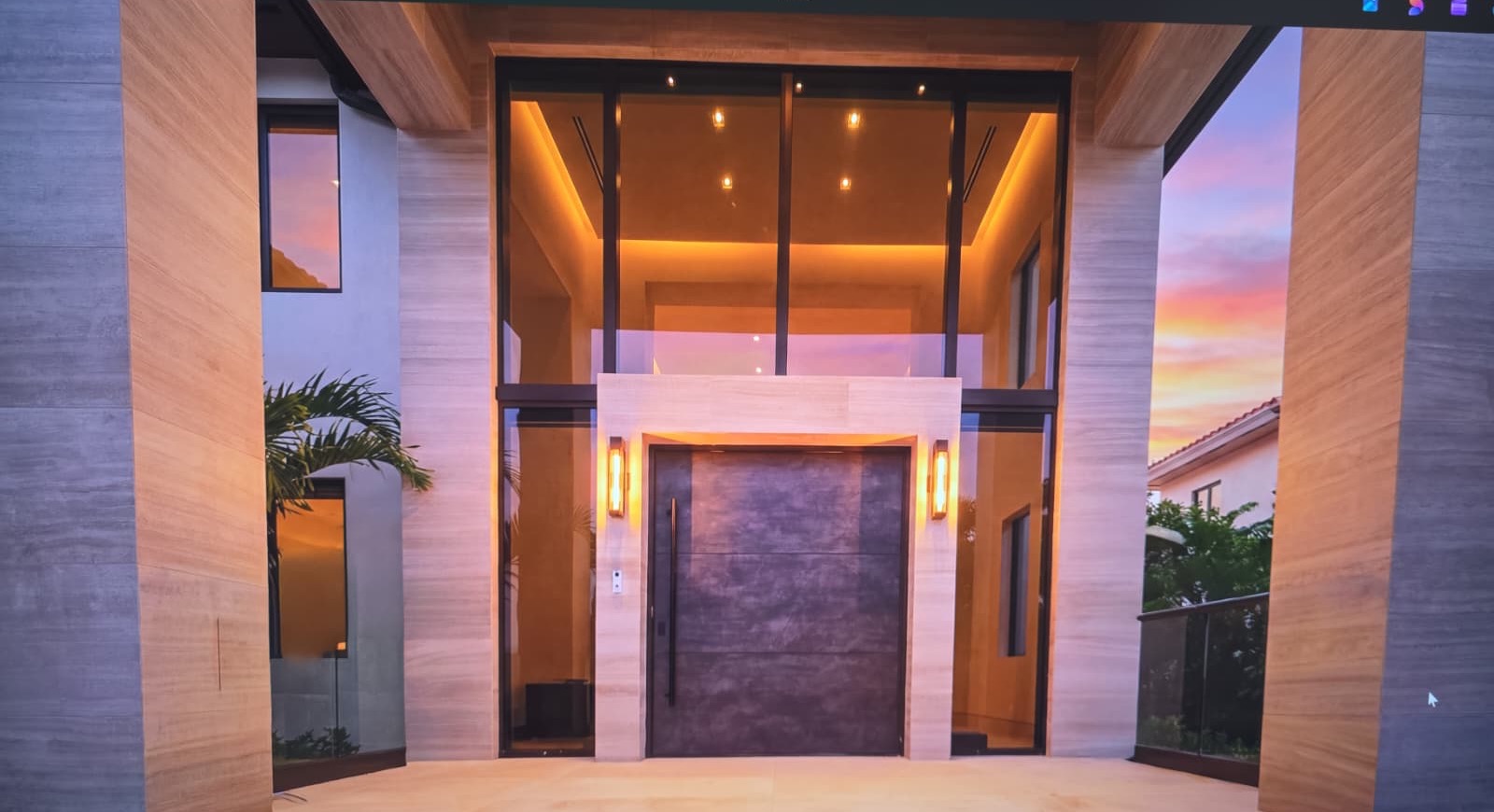

IW4000

Front-Set Window Wall

Large and Small MissileLead time · 4 to 6 weeks

Both residential and commercial. High-end homes where a window wall needs a working door integrated. Multifamily and hospitality commercial where a storefront aesthetic is wanted but the performance demands exceed what a standard storefront can deliver.

Frame heights up to 180" (15 feet)
Integrated swing door up to 76" wide (under separate approval)
Eight glass configurations (GL-1 through GL-8): single-pane and insulated laminated options
Design pressures up to ±80 PSF on glass (higher with reinforced mullions)
Unanchored jamb option up to 120" height
Substrate flexibility: concrete, steel, wood, aluminum
Also approved for Forced Entry Resistance per ASTM F588

Mulling

Explicitly FBC-approved to be combined with other Infinite Windows products in the same opening. When mulled in combination, the lower design pressure of the combined system governs.

Florida FL# 47881

Engineered by Javad Ahmad, PE

Also offered

Beyond the proprietary line.

Protection accessory

StormArmour®

A patented attachment that diverts wind-driven water away from sliding glass door tracks during severe weather — preventing up to 99% of water intrusion most insurance policies don't cover. We supply and install StormArmour® standalone or alongside new sliding-door installations.

Compact, lightweight attachment — installs in minutes, no tools
Tested in hurricane-simulation conditions
Compatible with most sliding glass door systems
Available standalone or alongside new door installations

Capability

Break Metals

Custom-fabricated aluminum break metal, made in-house. Standard architectural sheet thicknesses for cladding, trim, copings, and fascia. When break metal is coordinated and fabricated in-house alongside the window and door package, you eliminate a trade-gap: one fabricator handles the cladding detail, the window system, and the transitions between them.

Gauges: 0.042" and 0.063"
Applications: cladding, trim, sills, copings, fascia, column covers
Brake-formed in-house to match architectural profile drawings exactly
Tighter dimensional coordination when paired with iWin window systems — faster field responses, no finger-pointing between separate vendors when a detail doesn't resolve

For Architects

Specification, not sales.

Performance data, NOA documentation, and spec support for the glazing systems we fabricate. Published directly — no email gates, no login walls.

Performance Catalog

163 NFRC-certified configurations

Solarban, Solarcool, Guardian, Cool-Lite — filter by coating family and performance target.

Browse the catalog Resource Library

Product datasheets, NOAs, installation guides

Brand-specific technical documents available on request.

Browse the library

Specs, dimensions, project questions

Tell us about the opening.

Every project comes with a different set of constraints — size, design pressure, substrate, finish. Atlas can orient you on any of the four products. Or request a consultation and we'll build a proper spec package.

Request a consultation →
